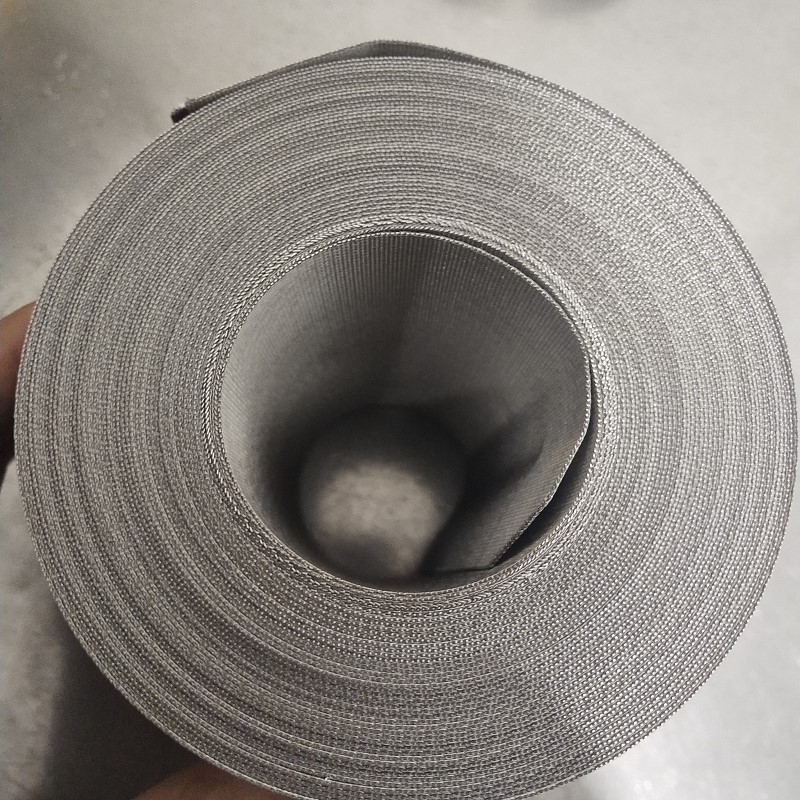

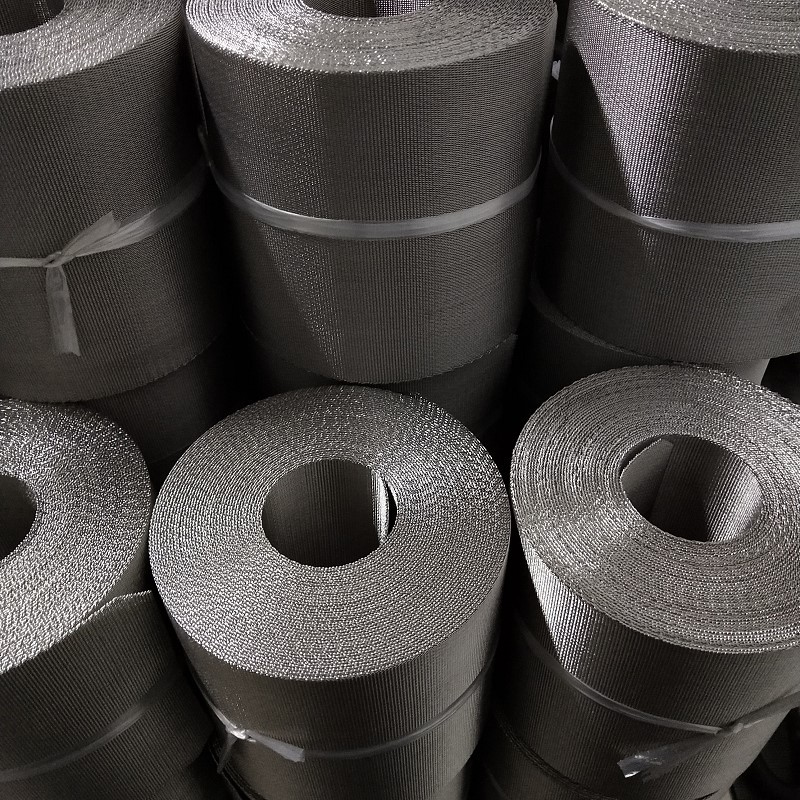

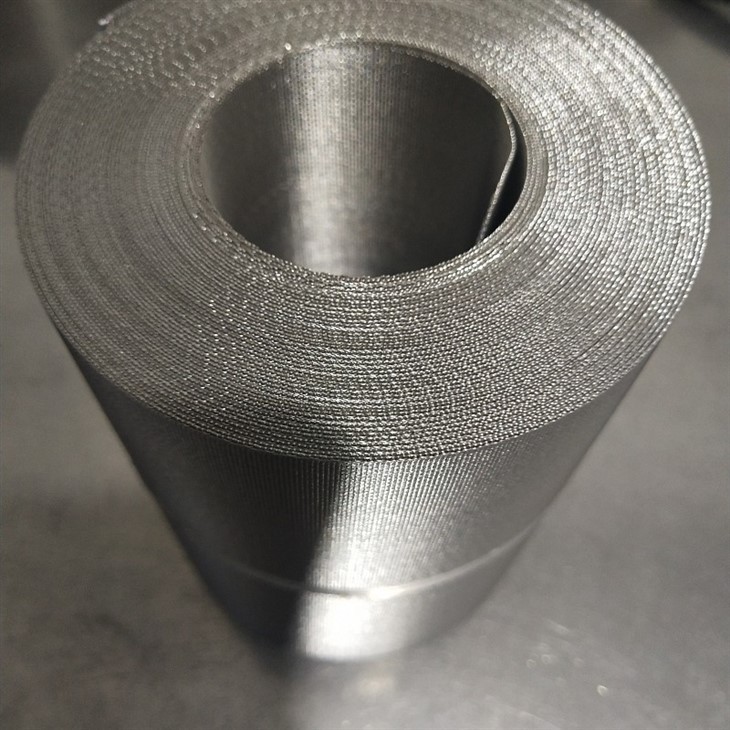

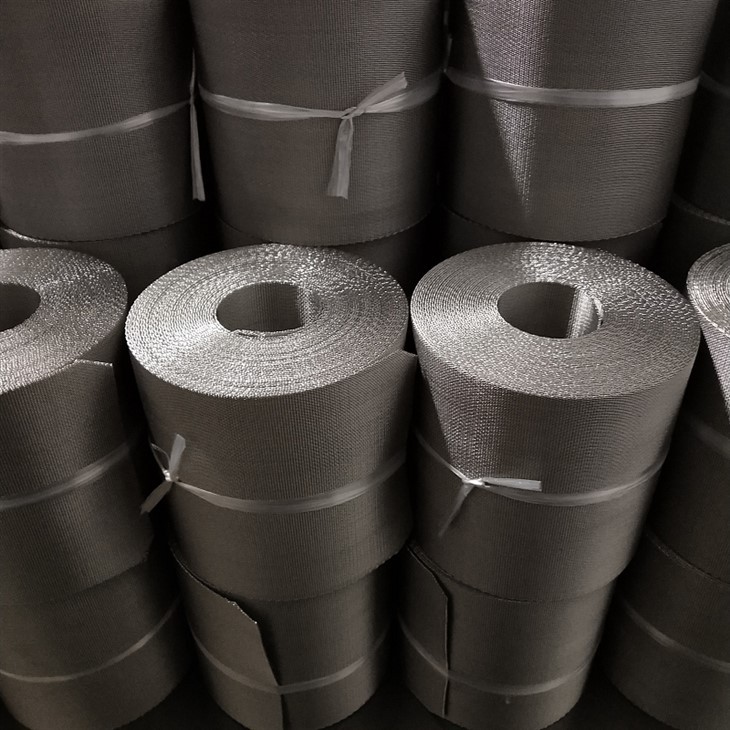

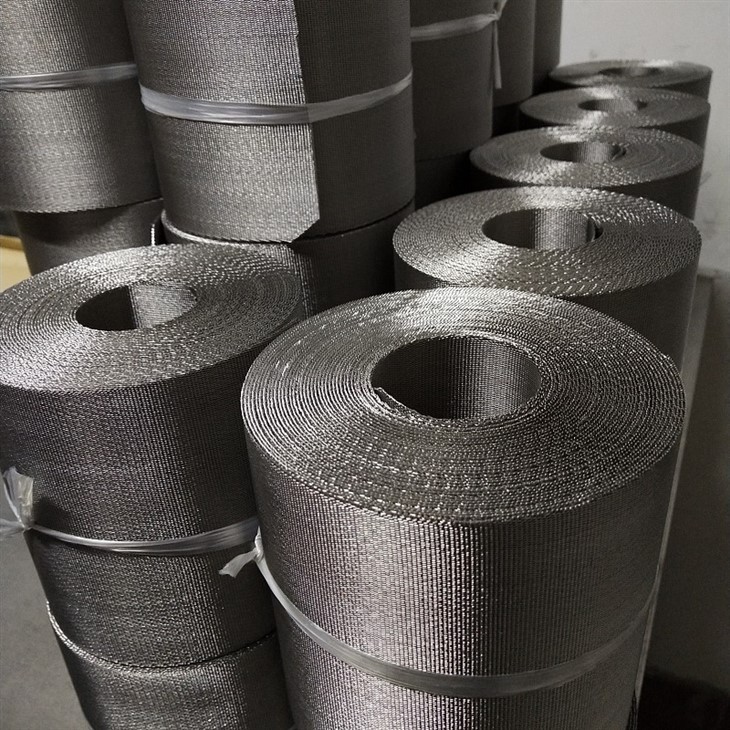

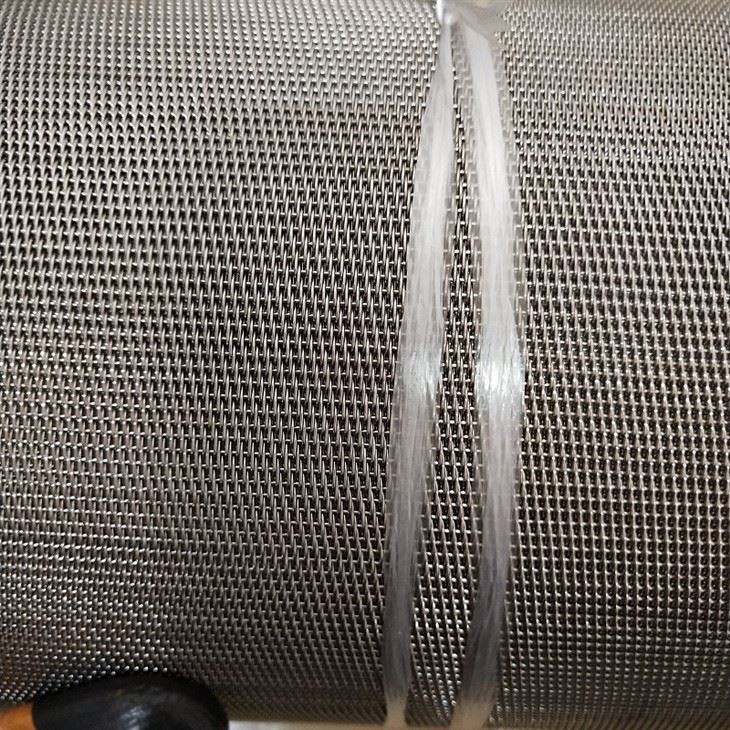

REVERSE DUTCH WEAVE WIRE MESH
Reverse Dutch weave wire mesh is a type of woven wire mesh where the weft wires are of larger diameter and are woven together more closely than the warp wires. This creates a dense and strong filter structure with smaller openings. The reverse Dutch weave pattern is designed mechanical strength and improved filtration efficiency for finer particles.
 |  |  |
The primary functions and applications of reverse Dutch weave wire mesh include:
1. Precise Filtration: The tight weave and smaller openings of reverse Dutch weave mesh make it ideal for applications requiring high precision filtration, such as in the aerospace, petrochemical, and oil and gas industries.
2. High Strength and Resistance: The design of the reverse Dutch weave pattern results in a robust and durable mesh structure, providing resistance to pressure differentials and mechanical stress. This makes it suitable for applications where mechanical strength is crucial.
3. Liquid and Gas Filtration: Reverse Dutch weave mesh is commonly used for filtration of liquids, gases, and fine particulate matter in various industrial processes, including hydraulic systems, fuel filtration, and chemical processing.
Overall, the reverse Dutch weave wire mesh is valued for its exceptional filtration efficiency, mechanical strength, and resistance to wear and tear, making it well-suited for demanding filtration applications.
Mesh count | Wire diameter(mm) | Thickness(mm) | Width(mm) |
54*15 | 0.45*0.6 | 1.75 | 50--800 |
72*15 | 0.45*0.55 | 1.7 | 50--800 |
132*17 | 0.23*0.45 | 1.2 | 50--1000 |
160*18 | 0.28*0.45 | 1.27 | 50--1000 |
200*40 | 0.17*0.27 | 0.7 | 50--1500 |
260*40 | 0.15*0.27 | 0.65 | 50--1500 |
300*40 | 0.13*0.27 | 0.65 | 50--1500 |
350*40 | 0.13*0.27 | 0.6 | 50--1500 |
Application field
Industrial filtration: In the chemical, petroleum, food and other industries, Reverse Dutch Weave Wire Mesh is used as a filter element, such as pressure filters, vacuum filters, etc., to separate and filter out impurities and particles in the material.
Environmental protection: In the environmental protection industry, Reverse Dutch Weave Wire Mesh can be used in the filtration part of sewage treatment, waste gas treatment and other equipment to effectively remove pollutants in wastewater or waste gas.
Other applications: In addition, Reverse Dutch Weave Wire Mesh can also be used to make protective nets, screening nets, etc., to meet various industrial and life needs.
Advantages and characteristics
Efficient filtration: The unique weaving method makes Reverse Dutch Weave Wire Mesh have excellent filtration performance, which can efficiently separate and filter fine particles.
Structural stability: The large weft diameter of the wire provides good structural strength, so that the wire mesh can withstand large mechanical loads and shocks.
Corrosion resistance: Made of stainless steel and other corrosion resistant materials, with good corrosion resistance.
Strong customizability: products with different specifications and performance can be customized according to customer needs.
